Brand Name : BAKTH / Neutral / OEM
Model Number : 103450AR2
Place of Origin : Guangdong, China
Certification : UL
Packaging Details : meet IATA
Supply Ability : 300000 Piece/Pieces per Month
MOQ : 100 pieces
Price : CN¥18.75/pieces 100-999 pieces
Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Fo
Weight : 36g
Size : 10.4*34.5*50.5 (mm) Max
Product features and features : production by automatic production line with high quality materials
Max charge voltage : 4.2V
Discharge cut off voltage : 2.75V
Standard charge current : 0.2C
Max charge current : 900mAh
Charging mode : CC/CV
Charging Temperature : 0~45℃
Discharging Temperature : -20 ~ 60℃
Warranty : 12 Months, 3months-1year
Anode Material : LCO
Chargeable : Yes
Storage Type : 30% full charged
The charging ratio : 0.5C
The discharge rate : 1C
Port : Shenzhen/Hongkong
Product features and features | production by automatic production line with high quality materials | Charging Temperature | 0~45℃ |
Nominal capacity | 1700mAh (0.2C) | Discharging Temperature | -20 ~ 60℃ |
Nominal voltage | 3.7V | Storage temperature | ≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
Max charge voltage | 4.2V | Humidity Range | 0~85% (non-condensing) |
Discharge cut off voltage | 2.75V | Dimension | 10.4*34.5*50.5 (mm) Max |
Standard charge current | 0.2C | Weight | ≤36g |
Max charge current | 900mAh | Brand | BAKTH / Neutral / OEM |
Standard dischrge current | 0.2C | Warranty | 12 Months |
Max dischrge current | 1800mAh | PCB/PCM | none |
Charging mode | CC/CV | Connector | none |
Internal resistance | ≤60m (AC Impedance, 1000Hz) | Battery type | Li-ion |
Cycle life | 300 cycles (≥80%) | Rechargeable or not | Yes |
Model | Nominal capacity | Nominal voltage | Max discharge current | Cycle life | Dimension | Certificate (Part) | Battery type |
N18650CP High energy | 3350mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | UN38.3 UL1642 IEC62133 | 18650 cell |
N18650CK High energy | 3050mAh | 3.6V | 2C | 500cycles | 65.0*18 (mm)Max | ||
N18650CL High energy | 3000mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
N18650CNP stability | 2500mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | ||
H18650CIL High rate | 2500mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
H18650CH High rate | 2600mAh | 3.6V | 4C | 500cycles | 65.0*18 (mm)Max | ||
H18650CC High rate | 2150mAh | 3.6V | 5C | 1000cycles | 65.0*18 (mm)Max | ||
N21700CB High energy | 4800mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
26650FS2-Fe Stability | 3300mAh | 3.2V | 5C | 2000cycles | 26*65.5 (mm)Max | LiFEPO4 | |
26650FS3-Fe Stability | 3600mAh | 3.2V | 3C | 2000cycles | 26*65.5 (mm)Max | ||
26650HP-Fe High rate | 2200mAh | 3.2V | 15C | 2000cycles | 26*65.5 (mm)Max |
![]() |

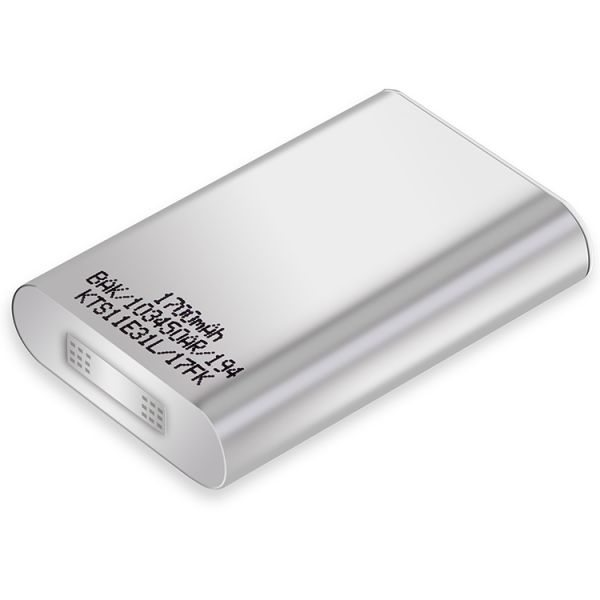

3.7V 1700mAh Rechargeable Li Ion Battery Lithium Polymer Cell 103450AR2 For Notebook Images |
